Hydro Pneu Press Machine
- PBK
|
Home

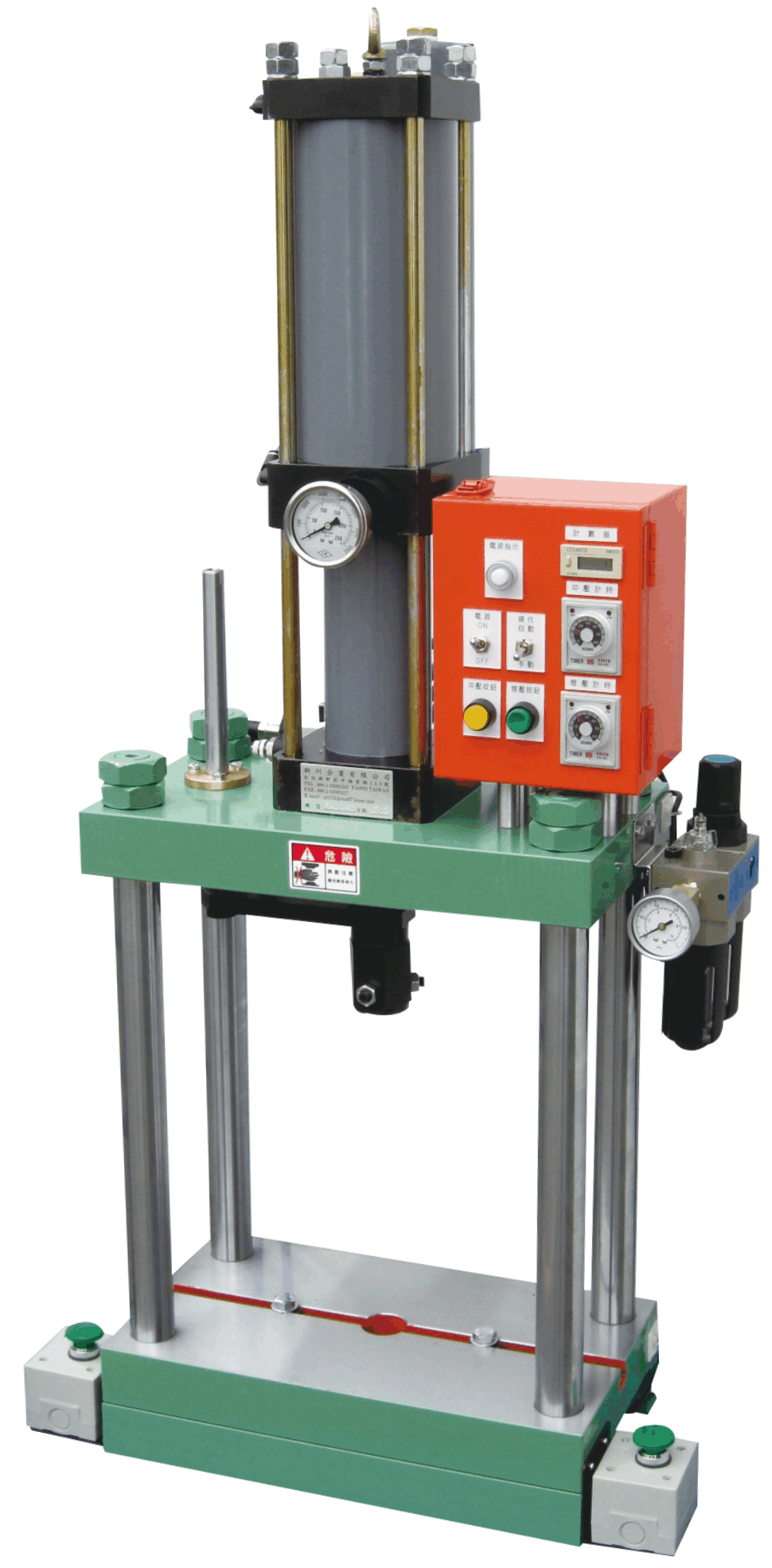

Picture |
|
|
|
Principle |
 |
● Fast descending travel - when
solenoid valve A is energized, compressed air will enter into
pneumatic-hydraulic changeover drum and thrust the hydraulic
piston down fast. |
| ● High thrusting force in descending
travel, with the time control, solenoid valve B energized
as well, pneumatic piston thrust the boosting plunger into
hydraulic cylinder to boost the oil pressure in hydraulic
cylinder and lead to a high thrusting force. |
| ● Fast ascending travel - both solenoid valves
are de-energized, hydraulic and pneumatic cylinder are returned
to original positions promptly, the pulling force is the pneumatic
pulling force. |
|
|
Exerting force table |
|
Travel
|
Pneumatic pressure
|
PBK-02T
|
PBK-03T
|
PBK-05T
|
PBK-08T
|
PBK-10T
|
PBK-12T
|
PBK-20T
|
PBK-34T
|
|
Fast descending travel
|
4kg/cm2
|
1257
|
1961
|
3070
|
5025
|
7828
|
9028
|
12228
|
19771
|
|
5kg/cm2
|
1570
|
2449
|
3830
|
6275
|
9785
|
11285
|
15285
|
24714
|
|
6kg/cm2
|
1885
|
2937
|
4593
|
7525
|
11742
|
13542
|
18342
|
29657
|
|
7kg/cm2
|
2200
|
3425
|
5355
|
8775
|
13700
|
15800
|
21400
|
34600
|
|
High thrusting force in descending travel
|
4kg/cm2
|
201
|
|
5kg/cm2
|
251
|
|
6kg/cm2
|
301
|
|
7kg/cm2
|
351
|
|
Fast ascending travel
|
4kg/cm2
|
150
|
|
5kg/cm2
|
188
|
|
6kg/cm2
|
255
|
|
7kg/cm2
|
263
|
|
|
Ordering method |
|
PBK
|
-
|
5T
|
-
|
120
|
-
|
20
|
- |
110
|
-
|
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
｜
|
|
(1)
|
|
(2)
|
|
(3)
|
|
(4)
|
|
(5)
|
|
(6)
|
| (1) |
Series |
PBK…Hydro Pneu Press Machine
PBKS…Triple-Board Hydro Pneu Press Machine
|
| (2) |
Exerting force |
2T,3T, 5T, 8T,10T,12T,20T,34T |
|
(3)
|
Total travel
|
120mm(order for special travel on demand)
|
|
(4)
|
High thrusting force travel
|
10mm,20mm
|
| (5) |
Voltage |
110…110V
220…220V |
| (6) |
Optics Sensor
(option) |
Space...No(Standard)
V1...Single-point type
V4...Four-mirror type |
|
|

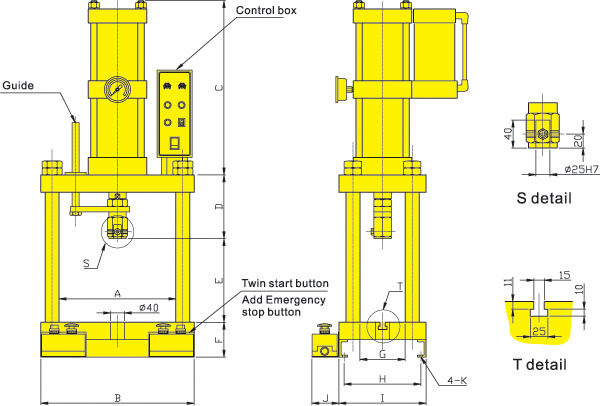

Dimensions |
|
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
|
PBK-2T
|
335
|
440
|
(500)
|
183
|
260
|
90
|
130
|
220X410
|
250
|
78
|
M10
|
|
PBK-3T
|
335
|
440
|
(500)
|
183
|
260
|
100
|
130
|
220X410
|
250
|
78
|
M10
|
|
PBK-5T
|
335
|
440
|
(500)
|
183
|
260
|
100
|
130
|
220X410
|
250
|
78
|
M10
|
|
PBK-8T
|
335
|
440
|
(500)
|
183
|
260
|
100
|
130
|
220X410
|
250
|
78
|
M10
|
|
PBK-10T
|
335
|
440
|
(500)
|
193
|
280
|
110
|
130
|
250X455
|
250
|
78
|
M10
|
|
PBK-12T
|
335
|
485
|
(500)
|
193
|
280
|
110
|
130
|
250X455
|
280
|
78
|
M10
|
|
PBK-20T
|
335
|
485
|
(500)
|
203
|
280
|
120
|
130
|
250X455
|
280
|
78
|
M10
|
|
PBK-34T
|
335
|
485
|
(500)
|
213
|
280
|
130
|
130
|
250X455
|
280
|
78
|
M10
|
Note
1：
Any position during the fast travel can be switched over
to the High Thrusting Force Travel of Second Stage by the
timer of Second Stage. |
Note 2：
Working height, pillar
width, cabinet size may vary with customer demand. |
|
