Pneumatic & Hydraulic Boosting
Press Machine - ARC
|
Home

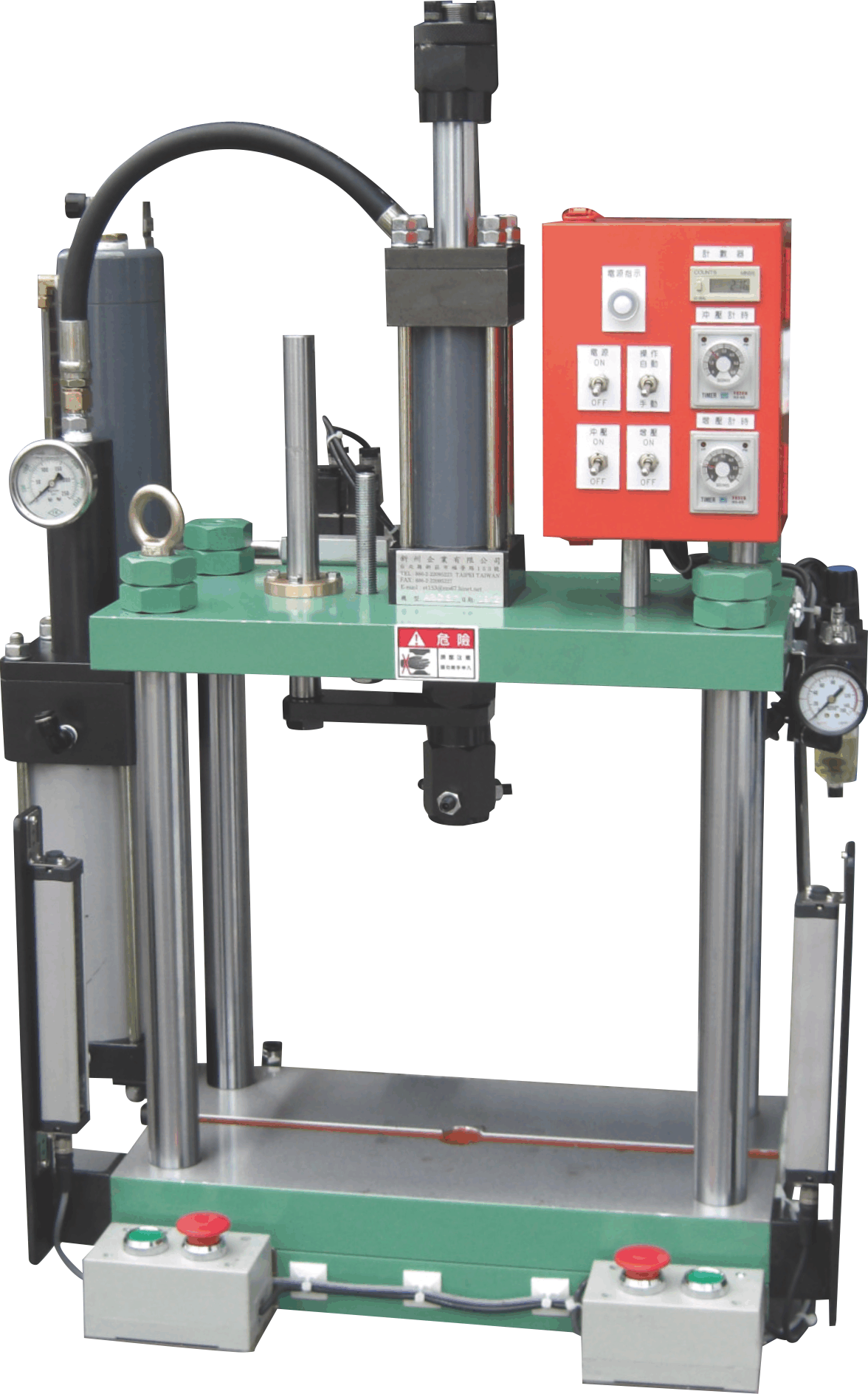

Picture |
Pat no. M241219
|
|
How to order |
|
ARC
|
-
|
3T
|
-
|
120
|
-
|
20
|
- |
220
|
-
|
|
|
¡U
|
|
¡U
|
|
¡U
|
|
¡U
|
|
¡U
|
|
¡U
|
|
(1)
|
|
(2)
|
|
(3)
|
|
(4)
|
|
(5)
|
|
(6)
|
| (1) |
Series |
ARC¡KPneumatic &
Hydraulic Booster Press Machine
|
| (2) |
Output(max.) |
3T¡K3Tons, 5T¡K
5Tons
8T¡K8Tons, 10T¡K
10Tons |
|
(3)
|
Total travel
|
120mm(Standard)
100,150,200mm(By order)
|
|
(4)
|
High thrusting force travel
|
3T¡K10,20mm
5T¡K10,12mm
8T¡K5,10mm 10T¡K5,10mm
|
| (5) |
Voltage |
110¡K110V
220¡K220V |
| (6) |
Optics Sensor
(option) |
Space...No(Standard)
V1...Single-point type
V4...Four-mirror type |
|
|

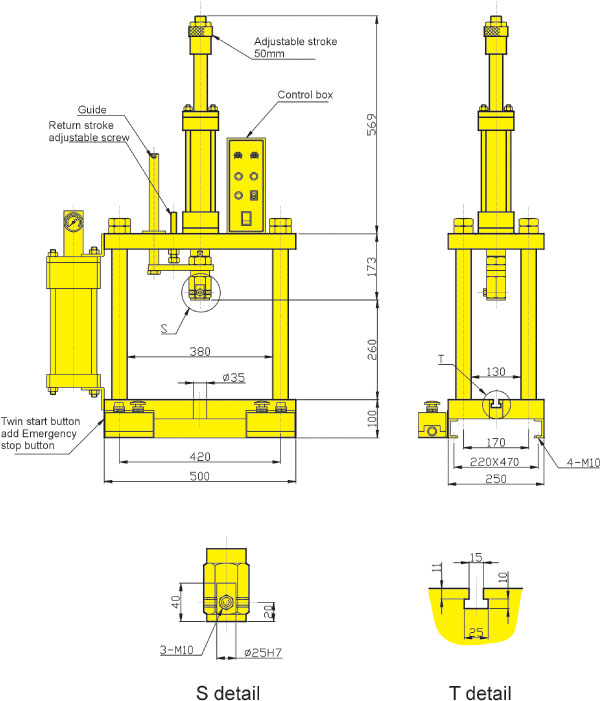

Dimensions |
|
Weight(kg)
|
3T
|
5T
|
8T |
10T |
|
180
|
190
|
220
|
220
|
Note1¡G
Working height & table
size & pillar height & stroke can ordered by customer.
Note2¡G
Two level speed, the speed
is able to adjust. |
|
